23mm X 86.45mm Copper SMT Splice Clip SMT Consumables Any Size Available

Product Categories

Shenzhen Kanghongjin Electronics Co., Ltd

Contact Now

Name: 23mm X 8645mm Copper SMT Splice Clip SMT Consumables Any Size Available
Brand: KangHongJin
Price: 1 USD

Add to Cart

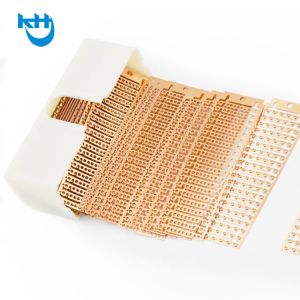

M0800 Frame Style SMT Splice Clip Copper Buckle 23mm X 86.45mm Copper SMT Splice Clip SMT Consumables Any Size Available

DESCRIPTION

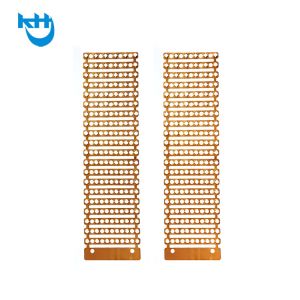

The M0800 Splice Clip is a bandolier design with 20 clips per frame. Use on paper or plastic carrier

tapes of all widths. Compatible with the MTL60 stapler-style splice tool, the M0700 will help you speed

up splicing operations.

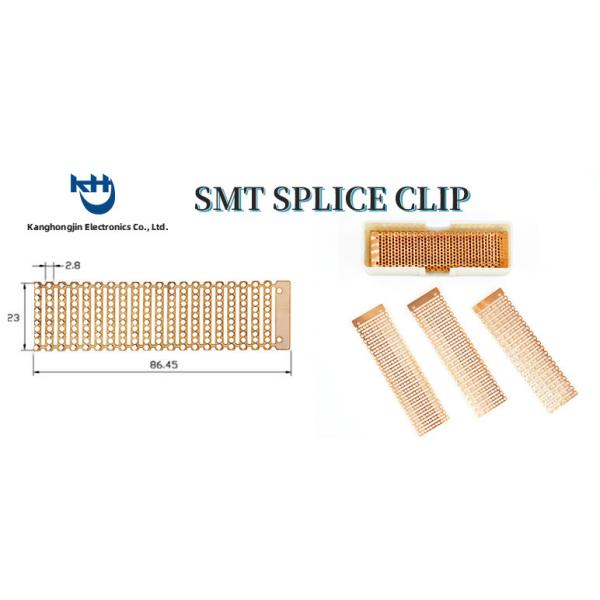

Part	Dimensions	Thickness	Package	Material
M0800	23mm x 86.45mm	0.1mm	20 clips/frame, 25 frames/box	Copper

APPLICATION	ADVANTAGES
1. The frame style shim used with	1. Holes allow the clip to pass through the
MTL60 splice tools	sprocket wheel of the feeder
2. Use with splice tapes of any size	2. Sharp edges easily pierce carrier tapes
3. Ensures SMT carrier tapes of all widths	3. Guarantees a secure connection,
can be joined securely	especially on larger sized carrier tapes

INSTRUCTIONS

1. Place a splice clip (teeth up) on the splice tool’s placement pins.

2. Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.

3. Crimp the handle to connect the carrier tapes.

4. Add a splice tape strip to the cover tape and press firmly to complete the splice

ceo@szsmt. com

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Kanghongjin Electronics Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

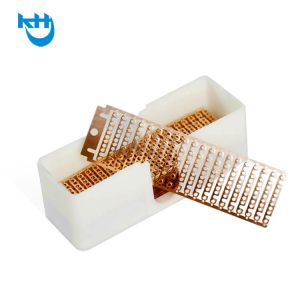

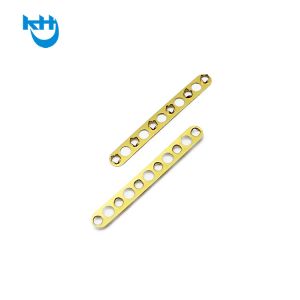

Explore more SMT Splice Clip products from this supplier
