Name: K700 Removable ESD SMT Splicing Cart SMT Trolley With Wheels
Brand: KangHongJin
Price: 1 USD

Add to Cart

K700 Removable SMT Trolley ESD SMT Splice Cart With Wheels
K700 Removable ESD SMT Splicing Cart SMT Trolley With Wheels

DESCRIPTION

K700 SMT Splicing Tool ESD SMT Splice Cart. A trolley for the placement of splicing tool, clips

and tapes and equipped with rotatable wheels, it can be moved freely on different SMT production

lines.

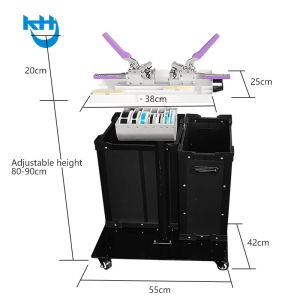

Part	Dimensions	Material	Packing
K700	100~110cm x 55cm x 42cm	Steel body + Hollow board	1 Pcs per box

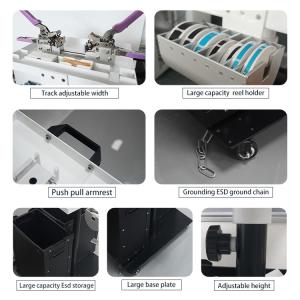

APPLICATION	ADVANTAGES
1. It can be moved freely on different	1. ESD design to eliminate the static
SMT production lines	damage in the production lines
2. Must be used with KangHongJin	2. Wheel rotatable can be movable around
splicing tool MTL60	production floor in all direction
3. Allow two operators to splicing tape	3. Splicing plate: Height can be adjusted
simultaneously	900mm~1030mm.
4. Easy operation and good reliability,	4. Special designed tool base and copper scrap
improve the efficiency	collection box: splice plier can be rotated freely
	5. Junk box: simple and light with anti-static

INSTRUCTIONS

1. Adjust the SMT Splice Cart to make the height suitable for youreself

2. Place the component carrier tape on the 2mm or 4mm pitch placement pin guides.

3. Intall M0700 clips on MTL60

4.Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.

5. Crimp the handle to connect the carrier tapes and remove

6. Add a splice tape strip to the cover tape and press firmly to complete the splice.
